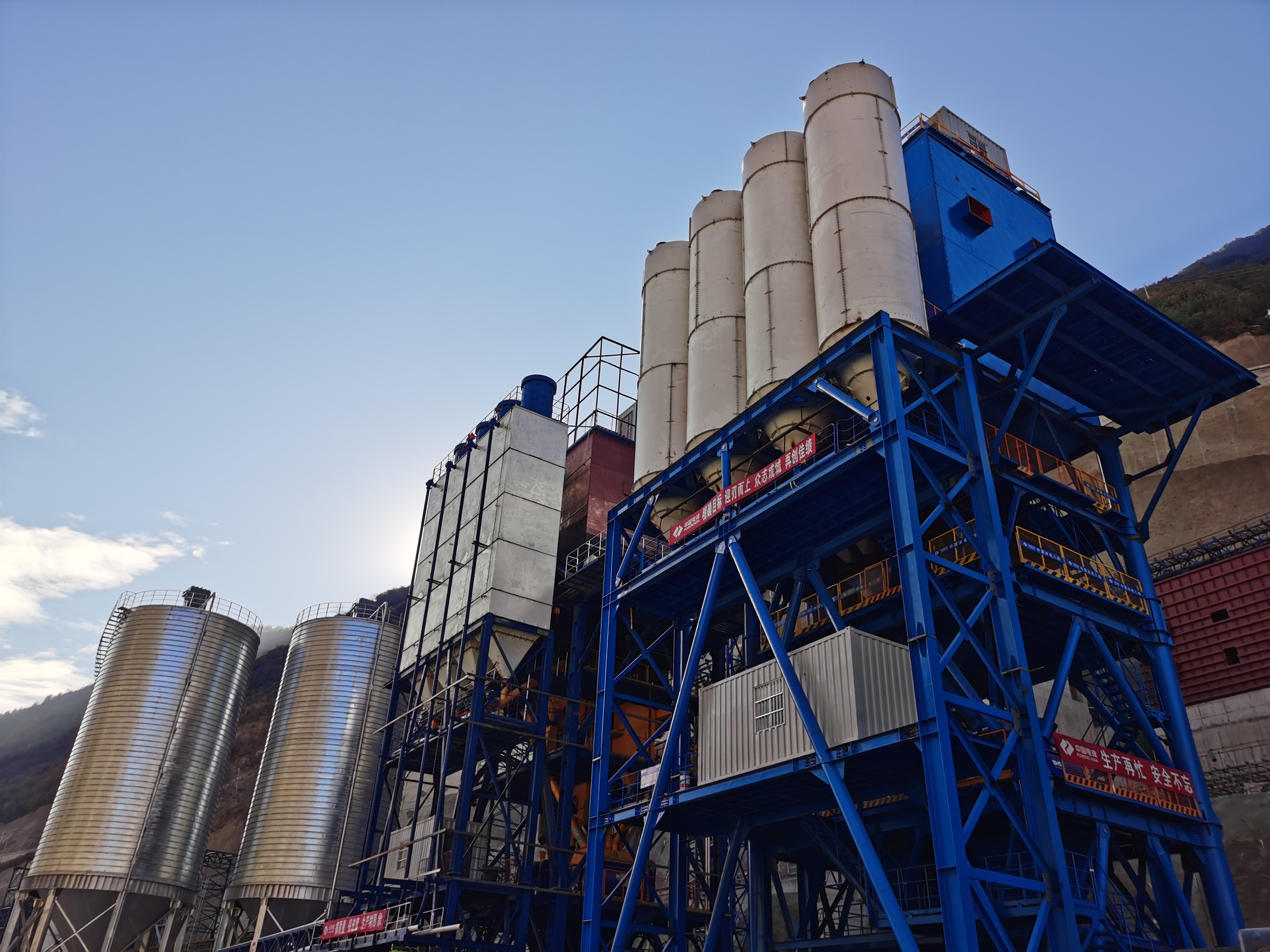

强制式混凝土搅拌楼
Gravity Type Concrete Mixing Plant
| 型号 Model | HL120-2S1500 | HL240-2S3000 | HL320-2S4500 | HL360-2S6000 |
| 理论生产率(m3/h) Theoretical productivity (m3/h) | 120 | 240 | 320 | 360 |
| 搅拌机数量×出料容积(L) The number of the mixer × discharge volume (L) | 2×1500 | 2×3000 | 2×4500 | 2×6000 |
| 骨料最大粒径(mm) Maximum aggregate size (mm) | 80 | 120 | ||
| 计量系统 Measurement system | 动态精度：骨料为±2%，粉料、冰及其他材料为±1% Dynamic precision: aggregate ±2%, powder、ice and and other materials ±1% | |||
| 技术要求 Technical requirement | 物料种类数量及预冷需求可按工艺要求定制 The typesand quantity of materials, and pre cooling requirements can be customized according to the requirement of process | |||
| 控制系统 Control system | 微机全自动控制系统 Automatic control system of computer | |||
| 总功率（kW） Total power (kW) | ≈340 | ≈430 | ≈700 | ≈820 |
自落式混凝土搅拌楼（站）
Gravity Type Concrete Mixing Plant
型号 Model | HZ75-2F1500 | HZ100-2F2000 | HL120-3F1500 | HZ120-2F3000 | HL240-4F3000 | HL320-4F4500 |
|
理论生产率(m3/h) Theoretical productivity (m3/h) | 75 | 100 | 120 | 120 | 240 | 320 |
|
搅拌机数量×出料容积(L) The number of the mixer × discharge volume (L) | 2×1500 | 2×2000 | 3×1500 | 2×3000 | 4×3000 | 4×4500 |
|
骨料最大粒径(mm) Maximum aggregate size (mm) | 150 | |||||
|
计量系统 Measurement system |
动态精度：骨料为±2%，粉料、冰及其他材料为±1% Dynamic precision: aggregate ±2%, powder、ice and and other materials ±1% | |||||
|
技术要求 Technical requirement |
物料种类数量及预冷需求可按工艺要求定制 The typesand quantity of materials, and pre cooling requirements can be customized according to the requirement of process | |||||
|
控制系统 Control system |
微机全自动控制系统 Automatic control system of computer | |||||
|
总功率（kW） Total power (kW) | ≈140 | ≈200 | ≈220 | ≈240 | ≈410 | ≈430 |

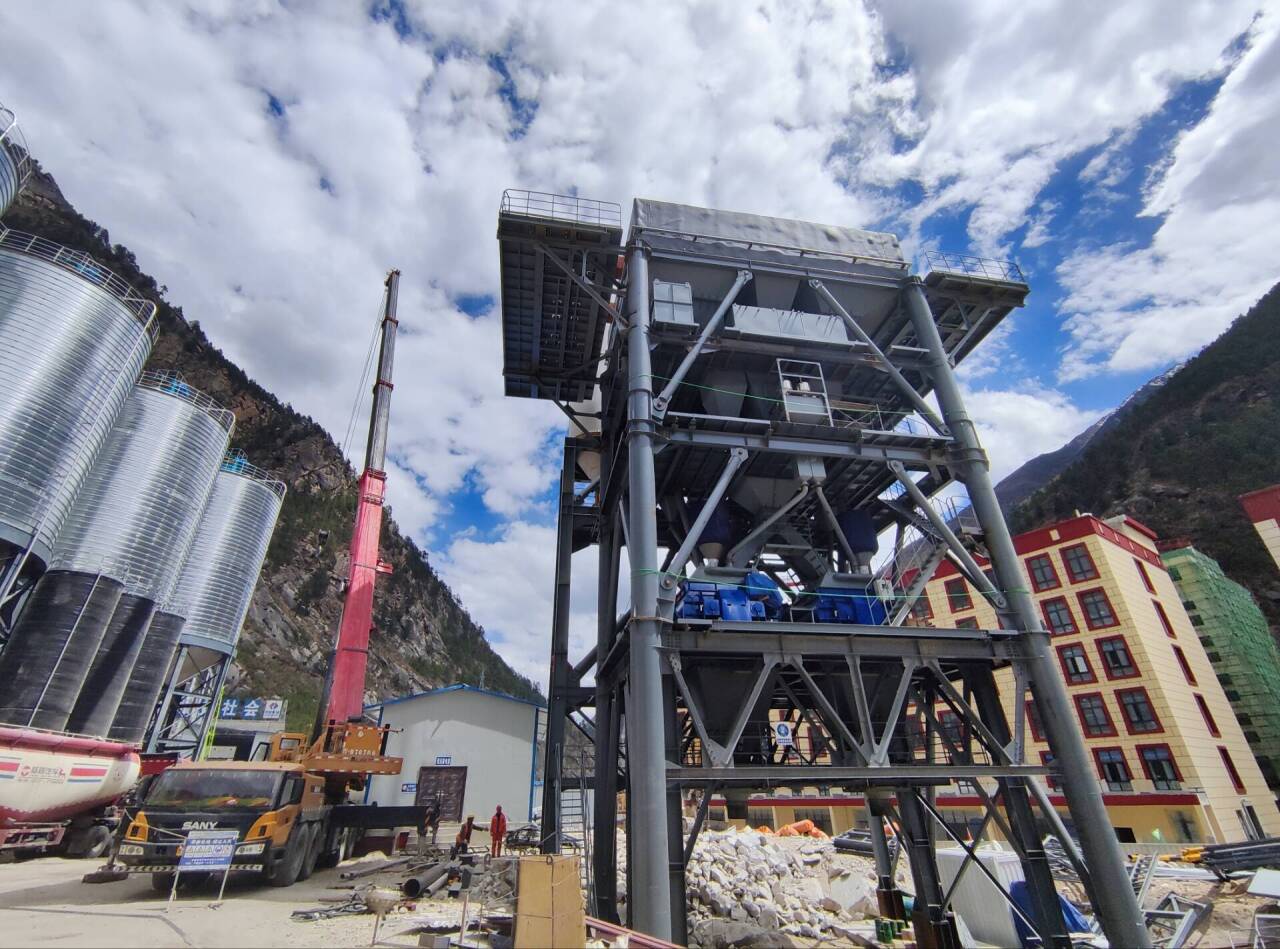

强制式混凝土搅拌站
Forced Concrete Mixing Plant
| 型号 Model | HZ60-1S1000 | HZ90-1S1500 | HZ120-2S1500 | HZ120-1S2000 | HZ180-1S3000 | HZ240-1S400 0 |
| 理论生产率(m3/h) Theoretical productivity (m3/h) | 60 | 90 | 120 | 120 | 180 | 240 |
| 搅拌机数量×出料容积(L) The number of the mixer × discharge volume (L) | 1×1000 | 1×1500 | 2×1500 | 1×2000 | 1×3000 | 1×4000 |
| 骨料最大粒径(mm) Maximum aggregate size (mm) | 40 | 80 | ||||
| 计量系统 Measurement system | 动态精度：骨料为±2%，粉料、冰及其他材料为±1% Dynamic precision: aggregate ±2%, powder、ice and and other materials ±1% | |||||
| 技术要求 Technical requirement | 物料种类数量及预冷需求可按工艺要求定制 The typesand quantity of materials, and pre cooling requirements can be customized according to the requirement of process | |||||
| 控制系统 Control system | 微机全自动控制系统 Automatic control system of computer | |||||
| 总功率（kW） Total power (kW) | ≈100 | ≈190 | ≈280 | ≈210 | ≈250 | ≈310 |
混凝土预冷系统
Concrete Pre-cooling System
事业部具有专业的混凝土预冷系统设计人员和软件，具有丰富的实践经验，可根据工程实际情况对整个混凝土预冷系统进行工艺设计、设备选型和总包。
The department with professional designers and software in concrete pre cooling sytem, with rich practical experience, can carry out the process design,
engineering equipment selection and general contracting according to the actual situation of the entire concrete pre cooling system.
储冰库及片冰输送系统
Flake Ice Storage and Conveying System
冰库技术参数（Flake ice storage technical parameters )
| 型号 Model | 储冰量（t） Storage capacity | 出冰能力（t） Ice transporting ability | 耙冰机（kW） Ice rake | 螺旋机（kW） Screw machine | 升降装置（kW） Lifting motion | 冰门（kW） Flake ice storage door |
| BK30 | 30 | 15 | 4 | 4 | 0.75 | 2.2 |
| BK50 | 50 | 20 | 4 | 4 | 0.75 | 2.2 |
| BK100 | 100 | 30 | 5.5 | 5.5 | 0.75 | 2.2 |
| BK150 | 150 | 40 | 5.5 | 5.5 | 0.75 | 2.2 |
| BK200 | 200 | 50 | 7.5 | 7.5 | 0.75 | 2.2 |
片冰气力输送系统参数（Ice?pneumatic conveying?system parameters )
| 型号 Model | QBS15 | QBS20 |
| 输送能力（t/h） Delivery capacity | 8——15 | 15——20 |
| 输送水平距离（m） Horizontal distance | ≤50 | ≤50 |
| 输送垂直距离（m） Vertical distance | ≤50 | ≤50 |
| 送风压力（MPa） Wind presssure | 0.45 | 0.45 |
| 输送管径(mm) Pipe diameter | Φ100 | Φ125 |

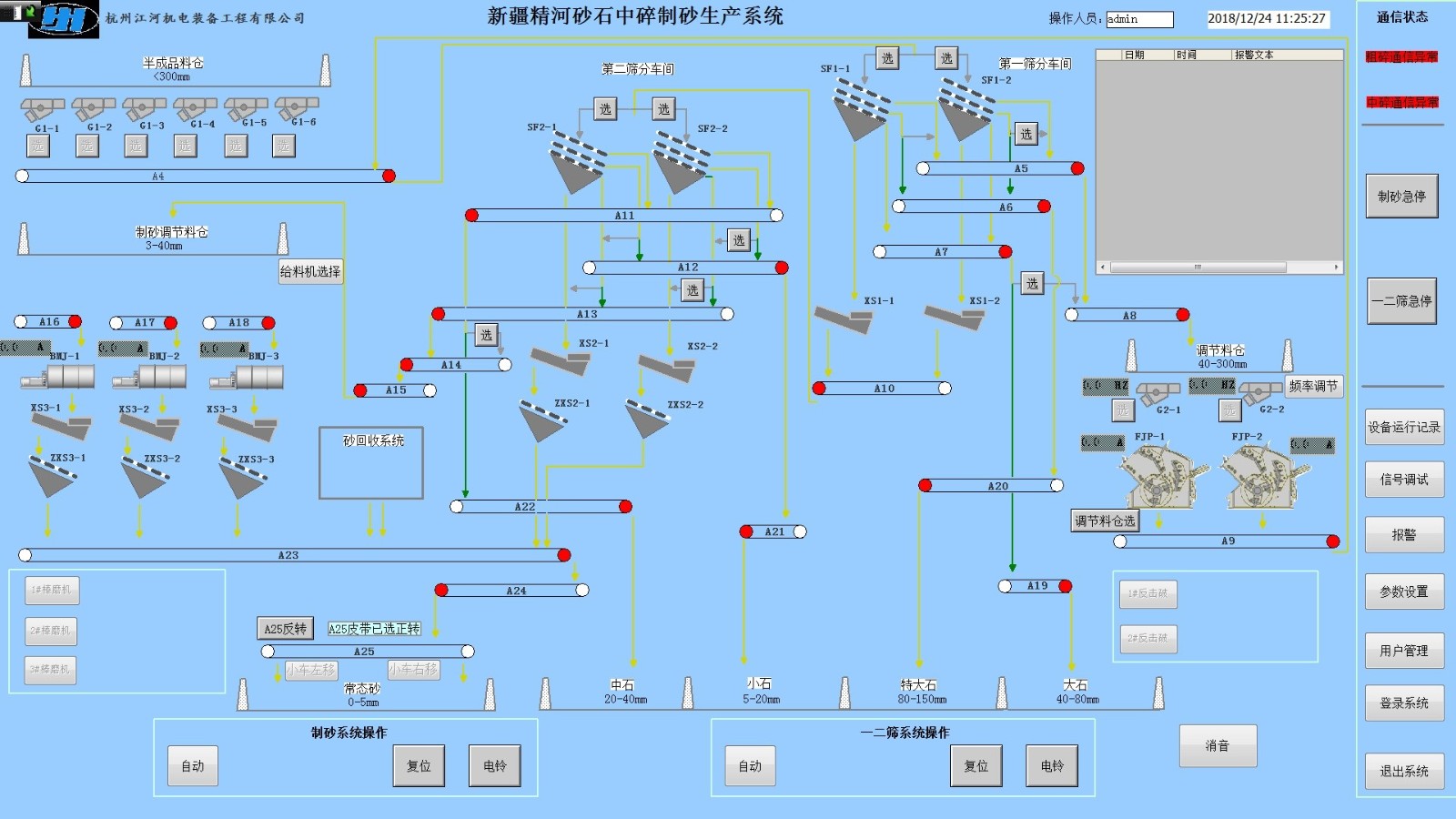

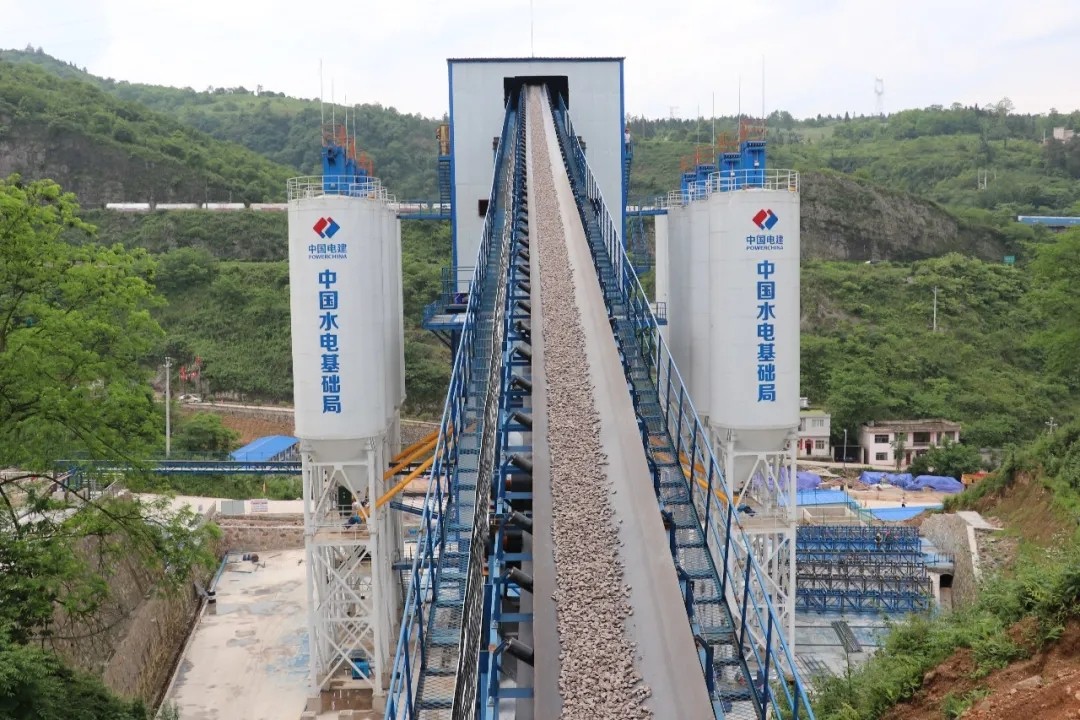

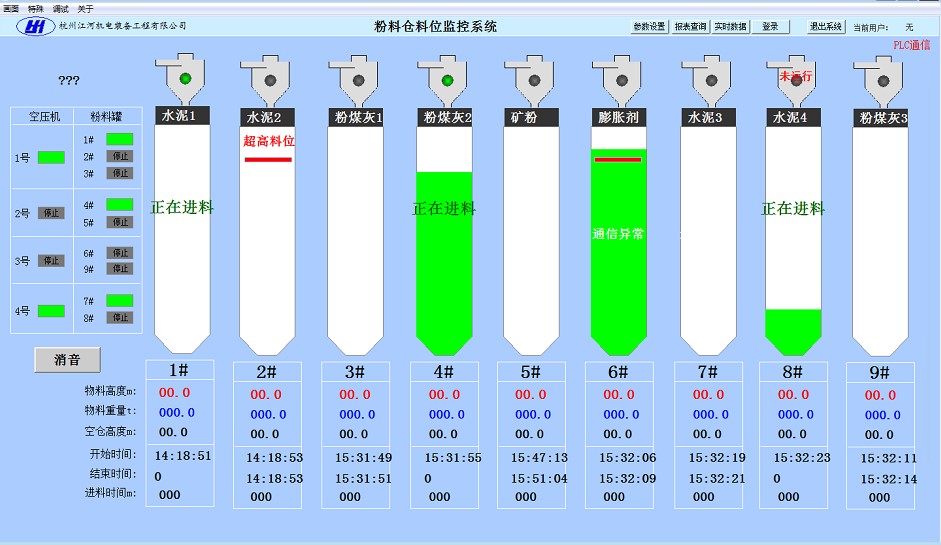

骨料生产输送系统、粉料输送系统设计及成套
Aggregate production of conveying system, powder conveying system design
